Other-Molded | Dual Round | 16 & 17 Poles
Heavy-Duty, Rugged Delivery of Power in Tough Environments
Unique Design Prevents Mismating to Insure Safety
Insulated and Locking Flip Lids on Receptacles for Safe Lock-Outs
| MECHANICAL (PLUG) |
| Plug Face: |
| Body: |
| Contact: |
| Cable: |
| 16/C |
| 17/C |
| MECHANICAL (RECEPTACLE) |
| Housing: |
| Insert: |
| Flip Lid: |
| Contact: |
| Termination: |
| Max. Wire Termination: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Ambient Oper. Temp: |
| CERTIFICATIONS |
| UL: |
| Neoprene |
| Neoprene |
| Brass |
| Black Neoprene Jacket, Type SO, |
| Over 26 X #30 Copper Stranding, |
| UL Listed, CSA 90° C Certified |
| 0.72" (18.3mm) |
| 0.84" (21.4mm) |
| Aluminum |
| Neoprene |
| Spring-Loaded |
| Brass |
| Screw Type |
| #16 AWG |
| 600V AC/DC |
| 7A |
| -4° TO 194° F (-20° TO 90° C) |
| UL Recognized, File NO. E46237 |
Part Number Selector
| 16P | 17P |
|
| MALE FACE VIEW |
 |
 |
| COLOR CODE | LEFT 1 - blue/black 2 - black/white 3 - red/white 4 - green/white 5 - blue/white 6 - black/red 7 - orange/black 8 - green/black RIGHT 1 - red/black 2 - white/black 3 - blue 4 - green 5 - red 6 - white 7 - black 8 - orange | LEFT 1 - red/white 2 - green/white 3 - white 4 - red 5 - orange 6 - blue 7 - black 8 - white/red socket - green-gnd RIGHT 1 - blue/white 2 - black/red 3 - white/black 4 - red/black 5 - orange/black 6 - blue/black 7 - black/white 8 - green/black |
| VOLTAGE | 600V AC/DC | 600V AC/DC |
| CURRENT | 7A | 7A |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||

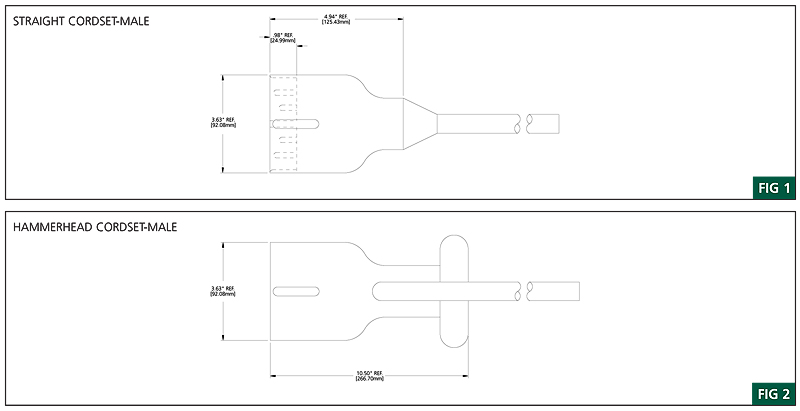

| STRAIGHT MALE PLUGS WITH 600V AC NEOPRENE JACKETED SO CABLE | ||
| 12' CABLE | 25216 | 25420 |

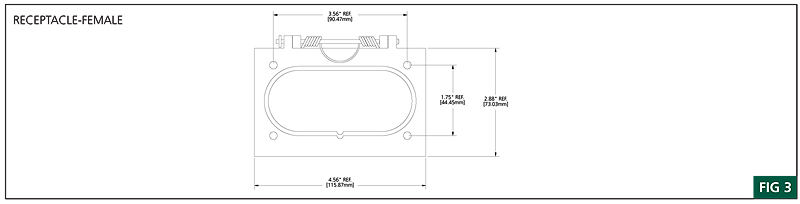

| MATING RECEP. | 25204 | 25401 |
| HAMMERHEAD MALE PLUGS WITH 600V AC NEOPRENE JACKETED SO CABLE | ||
| 12' CABLE | 25219 | 25423 |
| MATING RECEP. | 25204 | 25401 |
| FEMALE INSERTS | INSERTS 2 REQUIRED PER RECEPTACLE | |
| INSERT | - | 25404 |
Brad Harrison/Woodhead Products Distributed by Gross Automation | Brookfield, WI 262.233.1891
