Mini-Change Cordsets

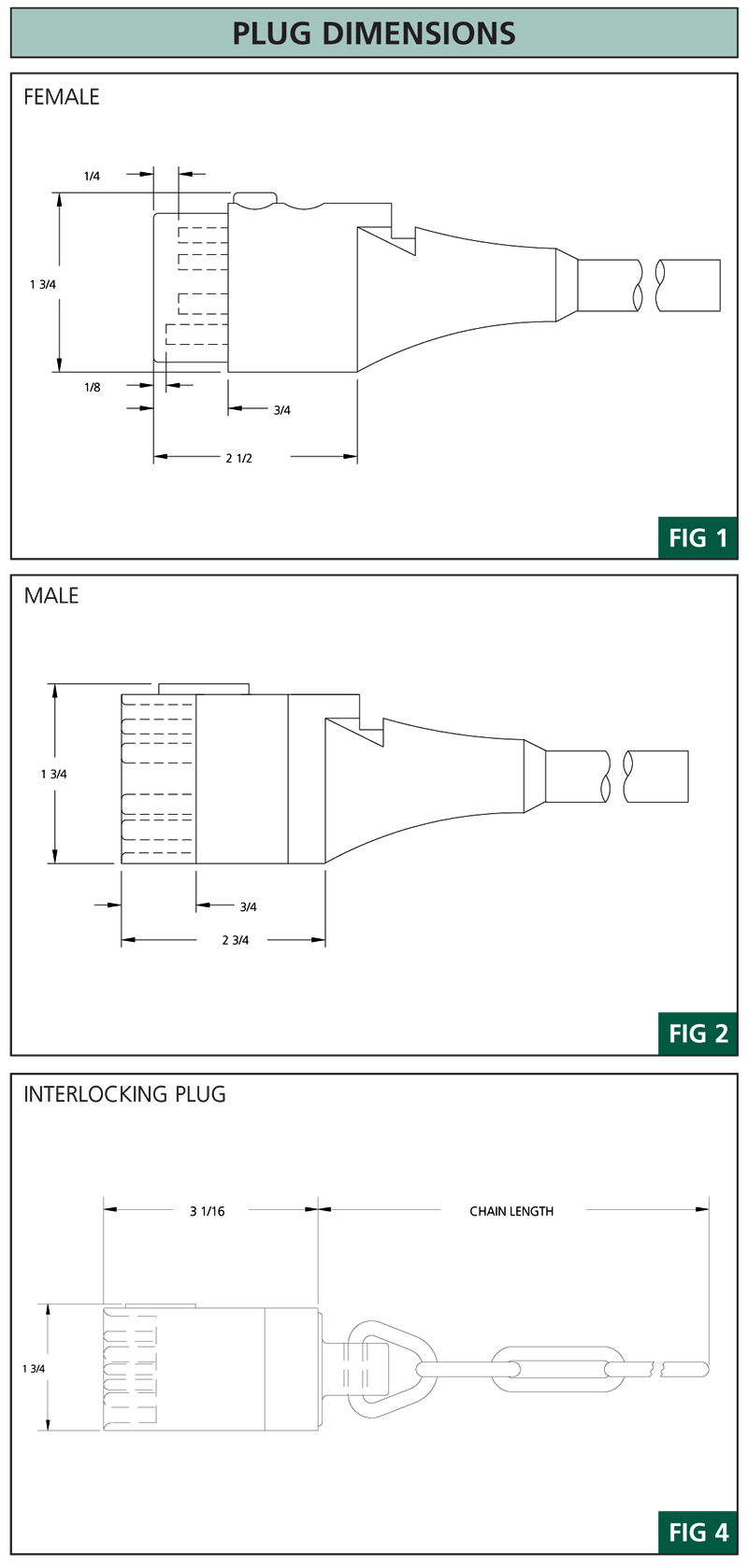

MECHANICAL (PLUG)
Plug Face:
Shroud (Male Only):
Contact:
Cable:

Outside Diameter:

8/C
9/C
10/C
11/C
12/C
Stranding:

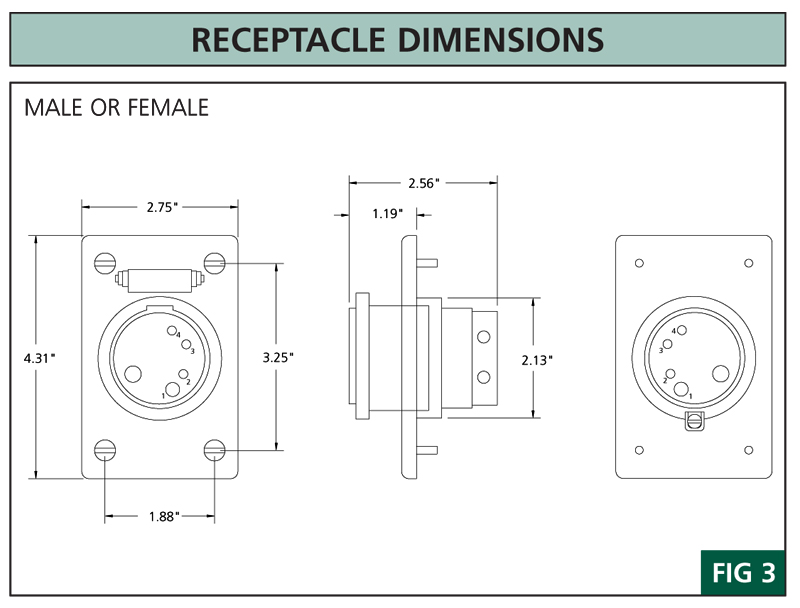

MECHANICAL (RECEPTACLE)
Housing:
Contact:
Flip Lid:
Termination:
Terminal Wire Sizes:
ELECTRICAL
Voltage Rating:
Amperage:
ENVIRONMENTAL
Ambient Oper. Temp:
CERTIFICATIONS
UL:



Download PDF
Black Neoprene
Polycarbonate
Brass
Black Neoprene Jacket, Type SO,
UL Listed, CSA 90° C Certified

#14 AWG #12 AWG
.765" .830"
.870" 1.015"
.870" .980"
.903" .903"
.903" .903"
41 X #30 65 X #30

Neoprene
Brass
Neoprene
Screw Type
#16 to #12 AWG

600V AC
7A to 14A

-4° TO 194° F (-20° TO 60° C)

UL Recognized, File NO. E4623

Part Number Selector
  8P 9P 10P 11P 12P
FEMALE FACE
VIEW
COLOR CODE 1 - green 2 - orange 3 - blue 4 - white/black 5 - red/black 6 - black 7 - white 8 - red 1 - green 2 - orange 3 - blue 4 - white/black 5 - red/black 6 - green/black 7 - black 8 - white 9 - red 1 - green 2 - orange 3 - blue4 - white/black5 - red/black6 - green/black7 - orange/black8 - black9 - white 10 - red 1 - green 2 - orange 3 - blue 4 - white/black 5 - red/black 6 - green/black 7 - orange/black 8 - blue/black 9 - white 10 - black 11 - red 1 - green 2 - orange 3 - blue 4 - white/black 5 - red/black 6 - green/black 7 - orange/black 8 - blue/black 9 - white 10 - black 11 - red 12 - black/white
VOLTAGE 600V AC 600V AC 600V AC 600V AC 600V AC
CURRENT/
CONDUCTOR		 #12/14.0A
#14/10.5A		 #12/14.0A
#14/10.5A		 #12/14.0A
#14/10.5A		 #12/10.0A
#14/7.0A		 #12/10.0A
#14/7.0A
CLICK ON A PART NUMBER FOR MORE OPTIONS
FEMALE FEMALE PLUGS WITH 600V AC NEOPRENE JACKETED SO CABLE AND MATING RECEPTACLES
#12 6' CABLE 34415 34725 65015 - 35629
#12 12' CABLE 34416 34726 65017 - 35630
#14 6' CABLE 34418 34728 65018 - 35632
#14 12' CABLE 34419 34729 65019 - 35633
MATING RECEP. 34421 34716 65014 - 35620
MALE MALE PLUGS WITH 600V AC NEOPRENE JACKETED SO CABLE AND MATING RECEPTACLES
#12 6' CABLE 34404 - 65005 65303 35622
#12 12' CABLE 34405 - 65003 65302 35610
#14 6' CABLE 34406 34717 65006   35653
#14 12' CABLE 34407 34718 65004 65306 35654
MATING RECEP. 34401 34701 65001 65301 35601
INTERLOCK PLUGS INTERLOCK PLUGS PINS 2-8, 3-9, 4-6 AND 5-7 SHORTED, 2' CHAIN
#1/0 CHAIN - 34740 - - -
INTERLOCK PLUGS INTERLOCK PLUGS PINS 2-4, 3-9, 5-10, 6-8, 7-11 SHORTED, 3' CHAIN
#1/0 CHAIN - - - - 35664
INTERLOCK PLUGS INTERLOCK PLUGS PINS 1-12, 2-4, 5-10, 6-8, SHORTED, 3' CHAIN
#4 CHAIN - - - - 35706
