Other-Molded | Control Connectors | 3 - 7 Poles
Heavy-Duty Control Connectors, 3P-7P Cordsets with Black Type SO Cord
Fully Shrouded for Impact Resistance for Reliability
Flip Covers on Receptacles Protect Contacts and Lock Plug to Prevent Disengagement

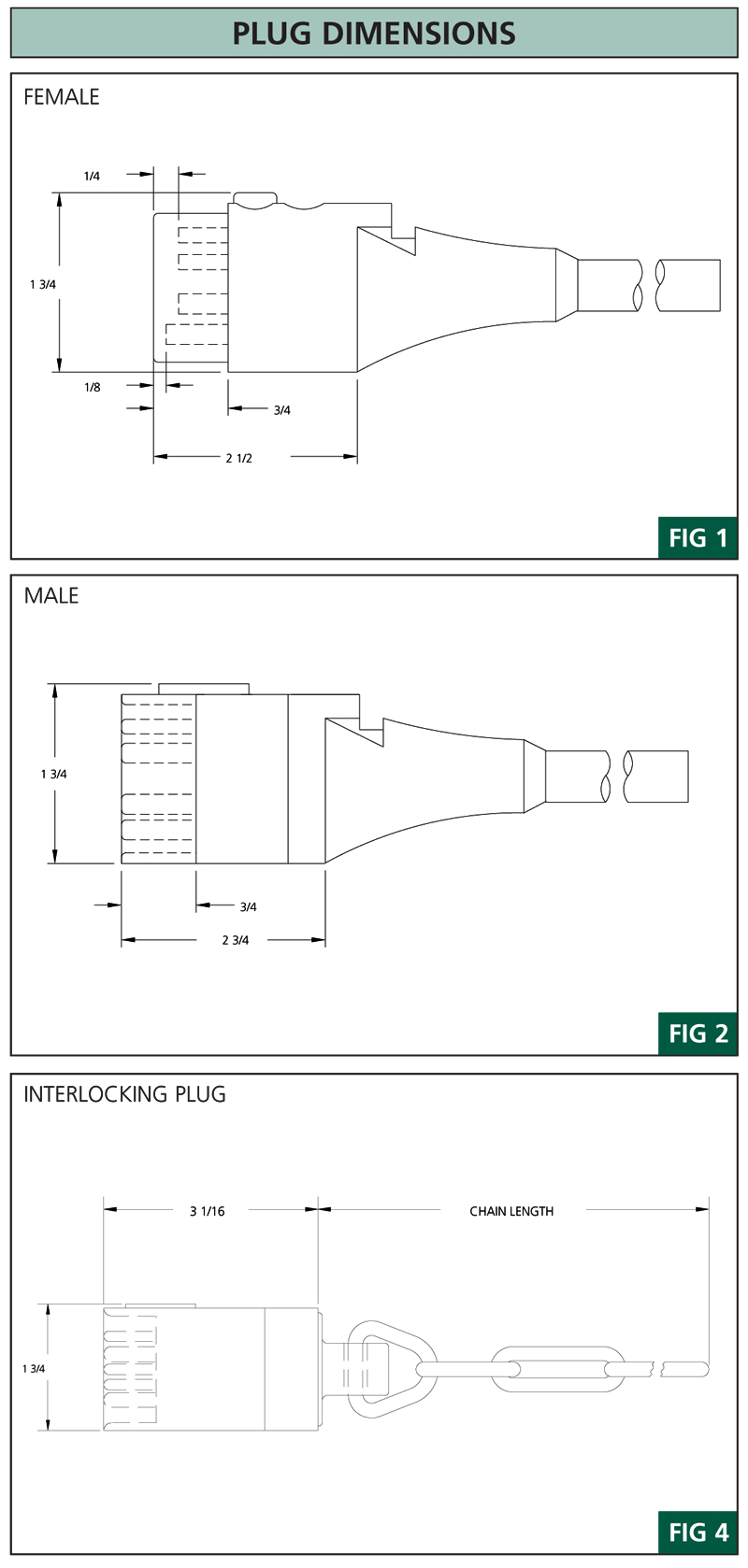

| MECHANICAL (PLUG) |
| Plug Face: |
| Shroud (Male Only): |
| Contact: |
| Cable: |
| Outside Diameter: |
| 3/C |
| 4/C |
| 5/C |
| 6/C |
| 7/C |
| Stranding: |

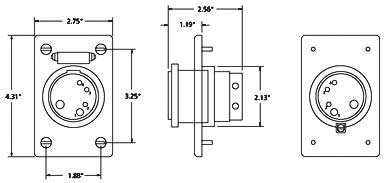

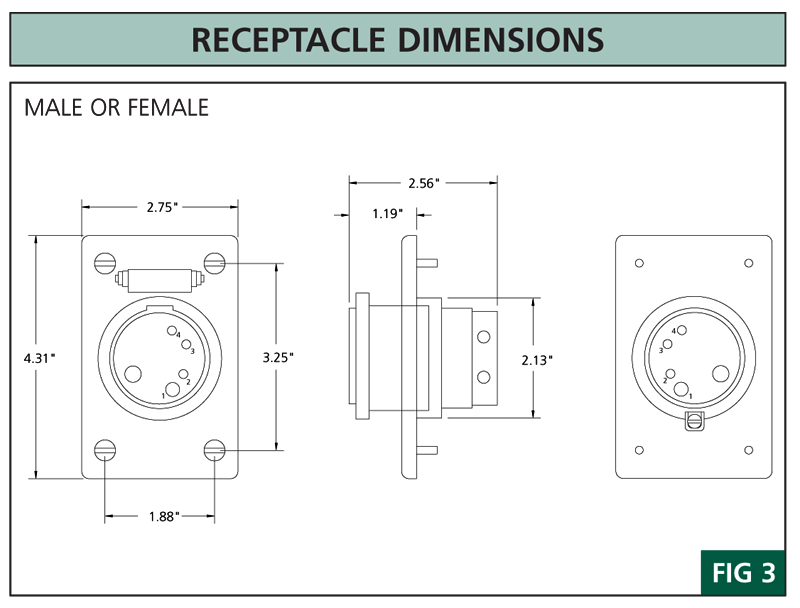

| MECHANICAL (RECEPTACLE) |
| Housing: |
| Contact: |
| Flip Lid: |
| Termination: |
| Terminal Wire Sizes: |
| ELECTRICAL |
| Voltage Rating: |
| Amperage: |
| ENVIRONMENTAL |
| Ambient Oper. Temp: |
| CERTIFICATIONS |
| UL: |
| Black Neoprene | |
| Polycarbonate | |
| Brass | |
| Black Neoprene Jacket, Type SO, | |
| UL Listed, CSA 90° C Certified | |
| #14 AWG | #12 AWG |
| - | .620" |
| - | .675" |
| - | .740" |
| .730" | .765" |
| .720" | .780" |
| 41 X #30 | 65 X #30 |
| Neoprene | |
| Brass | |
| Neoprene | |
| Screw Type | |
| #16 to #12 AWG | |
| 600V AC | |
| 12A to 20A | |
| -4° TO 140° F (-20° TO 60° C) | |
| UL Recognized, File NO. E46237 | |
Part Number Selector
| 3P | 4P | 5P | 6P | 7P | |
| FEMALE FACE VIEW |
 |
 |
 |
 |
 |
| COLOR CODE | 1 - green 2 - black 3 - white | 1 - green 2 - black 3 - white 4 - red x - none | 1 - green 2 - orange 3 - black 4 - white 5 - red | 1 - green 2 - orange 3 - blue 4 - black 5 - white 6 - red | 1 - green 2 - orange 3 - blue 4 - white/black 5 - black 6 - white 7 - red |
| VOLTAGE | 600V AC | 600V AC | 600V AC | 600V AC | 600V AC |
| CURRENT/ CONDUCTOR |
#12/25A - |
#12/20A - |
#12/16A - |
#12/16A #14/12A |
#12/16A #14/12A |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||||
| FEMALE | FEMALE PLUGS WITH 600V AC NEOPRENE JACKETED SO CABLE AND MATING RECEPTACLES | ||||
| #12 6' CABLE | - | - | - | 33809 | - |
| #12 12' CABLE | - | - | - | 33810 | 34120 |
| #14 6' CABLE | - | - | - | 33812 | 34122 |
| #14 12' CABLE | - | - | - | - | 34123 |
| MATING RECEP. | - | - | - | 33806 | 34110 |
| MALE | MALE PLUGS WITH 600V AC NEOPRENE JACKETED SO CABLE AND MATING RECEPTACLES | ||||
| #12 6' CABLE | - | 33204 | - | 33804 | 34109 |
| #12 12' CABLE | 32903 | 33203 | 33502 | 33802 | 34106 |
| #14 6' CABLE | - | - | - | 33807 | 34111 |
| #14 12' CABLE | - | - | - | 33805 | 34132 |
| MATING RECEP. | 32901 | 33201 | 33501 | 33801 | 34101 |
