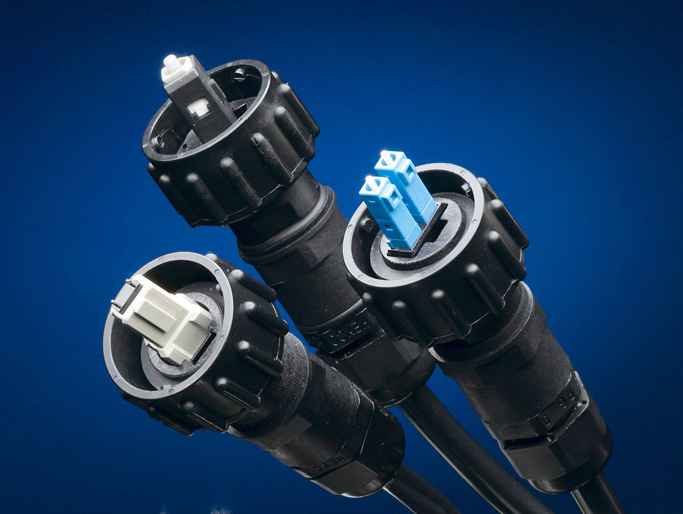

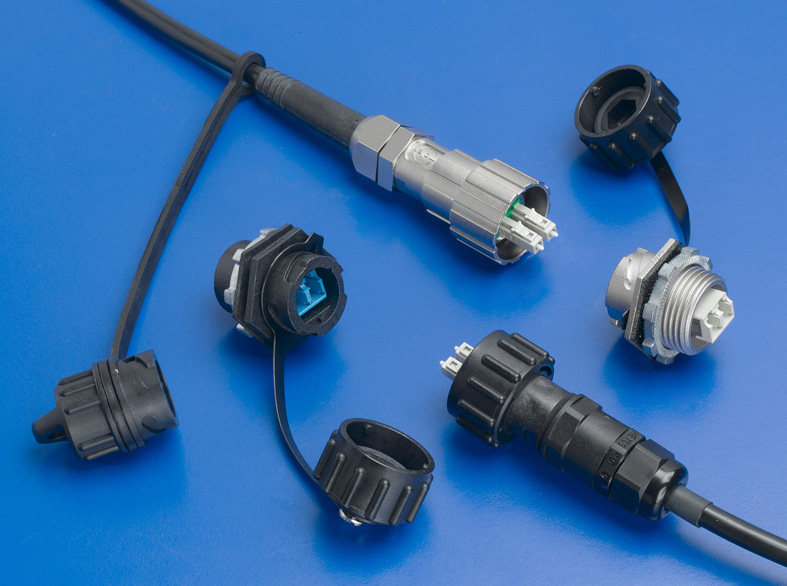

Designed with rugged and compact housings, Molex’s optical industrial cable assemblies incorporate the high-performance of a fiber optic connection with the versatility of a rugged industrial connector and are ideal for harsh industrial environments

Molex industrial cable assemblies provide an environmentally sealed optical connection for harsh environments. Plus, the assemblies guarantee an easy, one-step connection system with the combined push-pull insertion and bayonet-style mechanical latch.

Features & Benefits

  • Provides moisture and dust protection for use in harsh industrial environments; housing is NEMA 6P and IP67 rated
  • Sealed panel feed-through design for easy installation into enclosures
  • 100% optically tested to ensure quality performance assemblies
  • Available in single mode and multi mode styles to work with any common fiber type

Optical Ind Cable Assemblies & Adapters

Ordering Information
Part No. Description
106059-7100 Metal Connector LC Indoor/Outdoor, fiber count 2, multimode
106059-7300 Metal Connector LC-no logo Indoor/Outdoor, fiber count 2, multimode
106059-7500 Metal Connector LC Indoor/Outdoor, fiber count 2, singlemode
106059-7700 Metal Connector LC-no logo Indoor/Outdoor, fiber count 2, singlemode
106059-7900 Metal Connector LC Indoor/Outdoor, fiber count 2, singlemode-APC
106059-2500 Metal Connector LC Indoor/Outdoor, fiber count 1, singlemode
106059-2100 Metal Connector LC Indoor/Outdoor, fiber count 1, multimode
106059-0100 Plastic Connector LC Indoor, fiber count 2, multimode
106059-0110 Plastic Connector LC Indoor, fiber count 2, singlemode
106059-1100 Plastic Connector LC Outoor, fiber count 2, multimode
106059-1110 Plastic Connector LC Outoor, fiber count 2, singlemode
106059-2020 Plastic Connector SC Outoor, fiber count 1, multimode
106059-2025 Plastic Connector SC Outoor, fiber count 1, singlemode
106059-6100 Plastic Connector MPO Outoor, fiber count 4, multimode
106059-6105 Plastic Connector MPO Outoor, fiber count 8, multimode
106059-6110 Plastic Connector MPO Outoor, fiber count 12, multimode
106059-6115 Plastic Connector MPO Outoor, fiber count 4, multimode
106059-6120 Plastic Connector MPO Outoor, fiber count 8, singlemode
106059-6125 Plastic Connector MPO Outoor, fiber count 12, singlemode
106059-0020 Cable Accessory - Dust Cap/Pulling Cap
106059-0200 Adapters: phosphor bronze, Panel nut, plastic dust cvr, Industrial LC to Duplex LC, multimode
106059-0210 Adapters: zirconia, Panel nut, plastic dust cvr, Industrial LC to Duplex LC, singlemode
106059-0024 Adapters: ceramic, flange, plastic dust cvr, Integrated Industrial LC Duplex, singlemode
106059-3110 Adapters: phosphor bronze, panel nut, plastic dust cvr, Ind. LC to Ind. LC (in-line), multimode
106059-3100 Adapters: zirconia, panel nut, plastic dust cvr, Industrial LC to Industrial LC (in-line), singlemode
106059-2031 Adapters: phosphor bronze, panel nut, plastic dust cvr, Industrial SC to Simplex SC, multimode
106059-2030 Adapters: zirconia, panel nut, plastic dust cvr, Industrial SC to Simplex SC, singlemode
106059-4110 Adapters: phosphor bronze, panel nut, plastic dust cvr, Ind. SC to Ind. SC (in-line), multimode
106059-4100 Adapters: zirconia, panel nut, plastic dust cvr, Ind. SC to Ind. SC (in-line), singlemode
106059-6200 Adapters: (no sleeve), panel nut, plastic dust cvr, Ind. MPO to MPO/MTP, single or multi mode
106059-6210 Adapters: (no sleeve), flange, plastic dust cvr, Ind. MPO to Ind. MPO (in-line), single or multi mode
106059-7200 Adapters: phosphor bronze, panel nut, metal dust cvr, Ind. LC metal body to Duplex LC, multimode
106059-7400 Adapters: phosphor bronze, panel nut, metal dust cvr, Ind. LC metal body to Duplex LC(no logo), multimode
106059-7600 Adapters: zirconia, panel nut, metal dust cvr, Ind. LC metal body to Duplex LC, singlemode
106059-7800 Adapters: zirconia, panel nut, metal dust cvr, Ind. LC metal body to Duplex LC(no logo), singlemode
106059-7250 Adapters: phosphor bronze, panel nut, plastic dust cvr, Ind. LC metal body to Duplex LC, multimode
106059-7450 Adapters: phosphor bronze, panel nut, plastic dust cvr, Ind. LC metal body to Duplex LC(no logo), multimode
106059-7650 Adapters: zirconia, panel nut, plastic dust cvr, Ind. LC metal body to Duplex LC, singlemode
106059-7850 Adapters: zirconia, panel nut, plastic dust cvr, Ind. LC metal body to Duplex LC(no logo), singlemode
CLICK ON A PART NUMBER FOR MORE OPTIONS
